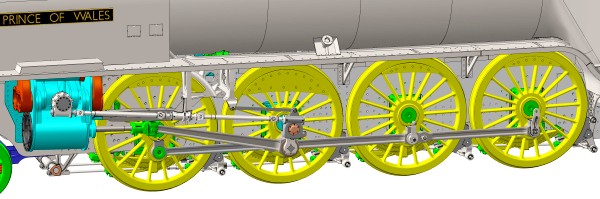

The work involved in designing and manufacturing the motion for new Gresley class P2 No. 2007 Prince of Wales includes:
- Redesign of coupling and connecting rods to use modern material (pre-war nickel chrome steel alloy proved prone to fracture
- Incorporation of late-pattern BR-type continuous white metal lined crank pin bearing bushes

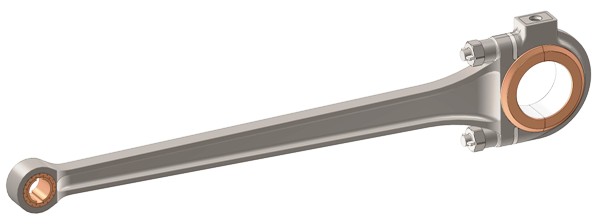

- Use of the late-A1 design of inside connecting rod which overcame the tendency for the original design of inside connecting rods on LNER ‘Pacifics’ to big-end failure
- Open die forging of six coupling rods, two outside connecting rods and the inside connecting rod and strap
- CNC machining of all rods
- Manufacture of oil box lids, coupling rod knuckle pins, nuts and washers and bearing bush keys
- Casting of leaded gunmetal and phosphor bronze castings of crank pin bearing bushes
- Machining and white metalling of bearing bushes
- Fitting oil box tops
- Assembly of bearing bushes to rods
- Polishing rods.
In May 2018 the Trust placed a £181,000 order with Stephenson (Engineering) Ltd of Atherton, Manchester for the heavy motion. The order included the forging, machining and heat treatment of the nine heavy motion rods – intermediate coupling rod LH/RH, trailing coupling rod LH/RH, leading coupling rod LH/RH, outside connecting rod LH/RH and the inside connecting rod assembly (including strap, gluts and strap nuts and washers) – and the combined piston and rod.
Progress to-date on the heavy motion includes:
- Six coupling rods: intermediate coupling rods (between second and third coupled wheelsets) were delivered to DLW in September 2020 and have been fettled and polished to a mirror finish; leading coupling rods (between first and second coupled wheelset) have been machined and were delivered to DLW in December 2020; trailing coupling rods (between third and fourth coupled wheelset) have been forged with machining starting in the January 2021 and delivery to DLW expected in early February 2021
- Two outside connecting rods: forging has started, to be followed by heat treatment, then machining and delivery expected at the end of April 2021
- Inside connecting rod and strap: inside connecting rod has been forged and the strap is in the process of being forged, to be followed by heat treatment and machining with delivery to DLW expected at the end of March 2021
- Bronze white metal lined rod bushes: taking shape at Locomotive Maintenance Services Ltd, Loughborough, with the first four bushes for the intermediate rods expected to be delivered to DLW in early 2021.
Orders are to follow for the motion including rod bushes, oil box covers and miscellaneous components.
If the project is to remain on schedule to complete No. 2007 within three years, the Trust needed to order the motion in 2021. Following the success of The Founders Club (to get the project to the point of cutting the frames), The Boiler Club (to fund the construction of the boiler) and The Mikado Club (to wheel the locomotive), The Cylinder Club (to make the cylinder block), the Trust decided to establish The Motion Club to raise an estimated £210,000 required to manufacture No. 2007’s motion.
In April 2018, The A1 Steam Locomotive Trust launched a new appeal to raise the funds to manufacture the motion for new Gresley class P2 No. 2007 Prince of Wales. The Motion Club was established with the aim of raising £210,000 from 175 supporters each donating £1,000 (plus Gift Aid) to the project in up to eight payments of £125 by standing order. In just seven weeks the appeal had already reached over a quarter of its £210,000 target and by the end of July 2019 we had recruited over 140 members to The Motion Club, with over £168,000 pledged. By the summer of 2020 we had reached the initial target of 175 members of The Motion Club. You can download The Motion Club leaflet here.
